微動開關

型號:Z 系列
特徵
• 新增H系列 高負載 20A(12) 120/250VAC ,且通過UL 61058-1認證
• 擁有3C及多國認證
• 動作柄型式齊全,能在各工作場所,選擇使用
• 一般用基本開關 Z TYPE 高精度,高容量開關
檔案下載 加入詢問
規格
等級 20(4)A 250VAC EN 61058-1
15A 125VAC or 250VAC UL 61058-1
1/2A 125VDC 1/4A 250VDC
接觸電阻(初始值) 15mΩ max.(初始值)
絕緣電阻 100MΩ min.(DC 500V)
耐電壓 1分鐘 AC1000V (50/60Hz)(每個端子的觸點之間)
1分鐘 AC1500V (50/60Hz)(每個端子和不帶電金屬零件之間)
電氣耐久性 10萬次/min
機械耐久性 100萬次/min
環境溫度 0°C~+55°C (60%最大濕度) UL 認證
操作速度 100萬次/min
操作頻率 30次/min
耐震動 10~55 Hz重複振幅1.5mm



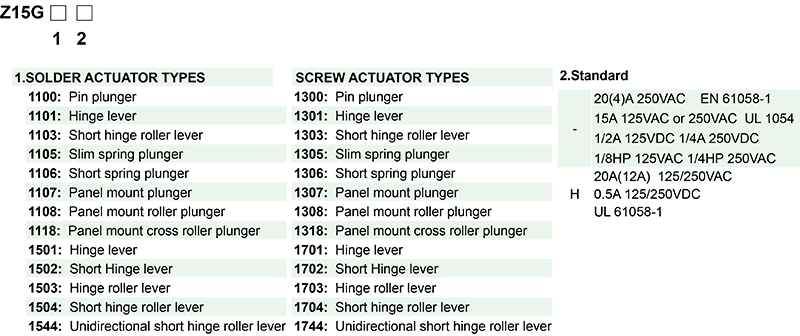

> 產品選型

操作特性

Item No.   |   Dimensions

Unit: mm
Z15G1300
Operating Characteristics
Terminal - Item No
Solder - Z15G1100
Screw - Z15G1300
OF - 250-350g
RF min. 114g
PT max. 0.4 mm
OT min. 0.13 mm
MD max. 0.05 mm
OP - 15.9±0.4 mm




Item No.   |   Dimensions

Unit: mm
Z15G1301
Operating Characteristics
Terminal - Item No
Solder - Z15G1101
Screw - Z15G1301
OF max 141g
RF min. 14g
PT max. 4 mm
OT min. 1.6 mm
MD max. 1.3 mm
FP max. 20.6 mm
OP - 17.4±0.8 mm




Item No.   |   Dimensions

Unit: mm
Z15G1303
Operating Characteristics
Terminal - Item No
Solder - Z15G1103
Screw - Z15G1303
OF max 141g
RF min. 14g
PT max. 4 mm
OT min. 1.6 mm
MD max. 1.3 mm
FP max. 31.8 mm
OP - 28.6±0.8 mm




Item No.   |   Dimensions

Unit: mm
Z15G1305
Operating Characteristics
Terminal - Item No
Solder - Z15G1105
Screw - Z15G1305
OF - 250-350g
RF min. 114g
PT max. 0.4 mm
OT min. 1.6 mm
MD max. 0.05 mm
OP - 28.2±0.5 mm




Item No.   |   Dimensions

Unit: mm
Z15G1306
Operating Characteristics
Terminal - Item No
Solder - Z15G1106
Screw - Z15G1306
OF - 250-350g
RF min. 114g
PT max. 0.4 mm
OT min. 1.6 mm
MD max. 0.05 mm
OP - 21.5±0.5 mm




Item No.   |   Dimensions

Unit: mm
Z15G1307
Operating Characteristics
Terminal - Item No
Solder - Z15G1107
Screw - Z15G1307
OF - 250-350g
RF min. 114g
PT max. 0.4 mm
OT min. 5.5 mm
MD max. 0.05 mm
OP - 21.8±0.8 mm




Item No.   |   Dimensions

Unit: mm
Z15G1308
Operating Characteristics
Terminal - Item No
Solder - Z15G1108
Screw - Z15G1308
OF - 250-350g
RF min. 114g
PT max. 0.4 mm
OT min. 3.58 mm
MD max. 0.05 mm
OP - 33.4±1.2 mm




Item No.   |   Dimensions

Unit: mm
Z15G1318
Operating Characteristics
Terminal - Item No
Solder - Z15G1118
Screw - Z15G1318
OF - 250-350g
RF min. 114g
PT max. 0.4 mm
OT min. 3.58 mm
MD max. 0.05 mm
OP - 33.4±1.2 mm




Item No.   |   Dimensions

Unit: mm
Z15G1701
Operating Characteristics
Terminal - Item No
Solder - Z15G1501
Screw - Z15G1701
OF max 70g
RF min. 14g
PT max. 10 mm
OT min. 5.6 mm
MD max. 1.27 mm
FP max. 28.2 mm
OP - 19±0.8 mm




Item No.   |   Dimensions

Unit: mmm
Z15G1702
Operating Characteristics
Terminal - Item No
Solder - Z15G1502
Screw - Z15G1702
OF max 90g
RF min. 18g
PT max. 7 mm
OT min. 3.5 mm
MD max. 1 mm
FP max. 26.2 mm
OP - 19.8±0.8 mm




Item No.   |   Dimensions

Unit: mm
Z15G1703
Operating Characteristics
Terminal - Item No
Solder - Z15G1503
Screw - Z15G1703
OF max 100g
RF min. 22g
PT max. 7.1 mm
OT min. 4 mm
MD max. 1.02 mm
FP max. 36.5 mm
OP - 30.2±0.8 mm




Item No.   |   Dimensions

Unit: mm
Z15G1704
Operating Characteristics
Terminal - Item No
Solder - Z15G1504
Screw - Z15G1704
OF max 160g
RF min. 42g
PT max. 2.7 mm
OT min. 2.4 mm
MD max. 0.5 mm
FP max. 32.5 mm
OP - 30.2±0.4 mm




Item No.   |   Dimensions

Unit: mm
Z15G1744
Operating Characteristics
Terminal - Item No
Solder - Z15G1544
Screw - Z15G1744
OF max 170g
RF min. 42g
PT max. 2.7 mm
OT min. 2.4 mm
MD max. 0.51 mm
FP max. 43.6 mm
OP - 41.3±0.8 mm




Item No.   |   Dimensions

Unit: mm
ZP15G1306
Operating Characteristics
Terminal - Item No
Solder - ZP15G1106
Screw - ZP15G1306
OF max 540g
RF min. 114g
PT max. 2.3 mm
OT min. 1.6 mm
MD max. 0.06 mm
OP - 28.2±0.5 mm






TERMINAL ENCLOSURES AA8000
