Tact Switch
Model：TP614 Series
Feature :
• Sharp "click" feeling with positive reliability feedback.
• Several LED colors options.
Applications :
• Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs, etc.
Download
Add to inquiry
• Sharp "click" feeling with positive reliability feedback.
• Several LED colors options.
Applications :
• Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs, etc.
Specifications
| Item | Standard |
| Rating | 50mA 12VDC |
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrically Life | 300,000 Cycles Min |
| Ambient Temperature | -20°C~ +70°C |
| Operating Force | 160 ± 50gf |
| Travel | 0.25 ± 0.1 mm |
LED Specifications
| For the Specification about the other LEDs, Please contact with sales department | |||||
| LED Specifications | |||||
| Color | VR | IF | Recommend Operating Current | VF | |
| Nor | Max | ||||
| RED | DC 5V | 20 mA | 20 mA | 1.7V | 2.4V |
| GREEN | DC 5V | 20 mA | 20 mA | 1.9V | 2.4V |
| YELLOW | DC 5V | 20 mA | 20 mA | 1.9V | 2.4V |
| BLUE | DC 5V | 20 mA | 20 mA | 3.0V | 3.6V |
| WHITE | DC 5V | 20 mA | 20 mA | 1.7V | 2.4V |

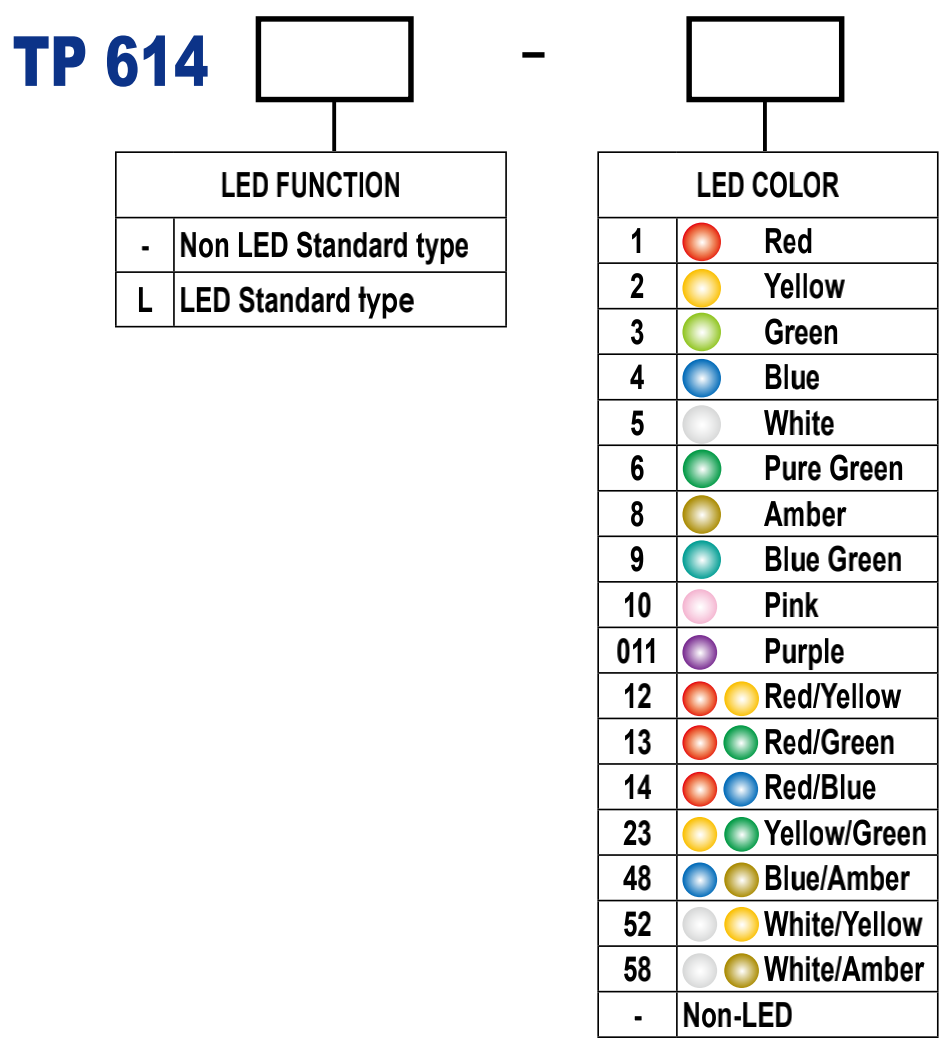

> Product Selection
Operating Characteristics
| Unit: mm | |||
| TP614 |
Item No.
Dimensions
P.C.B Layout
| Unit: mm | |||
| TP614L |
Item No.
Dimensions
P.C.B Layout
