Tact Switch

Tact Switch

Model:PB617 Series
Feature :
• Metal dome and rubber dome options.
• Precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm).
• Adequate for DIP & SMT.
• Several LED colors options.
• Several traveling force options.
• Several cap legends options.

Applications :
• Operating switches in all types of electronic equipment such as audio apparatus, office equipment , communications apparatus, TV sets, VCRs, etc.
Download Add to inquiry
Specifications
Specifications
Series PB617 PB627 PB637 PB647
Rating 50mA 48VDC 10mA 12VDC 50mA 48VDC 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500 VDC) 100MΩ Min (at 500 VDC) 100MΩ Min (at 500 VDC) 100MΩ Min (at 500 VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute) AC 250V (50/60 Hz for 1 minute) AC 250V (50/60 Hz for 1 minute) AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial) 500mΩ Max. (Initial) 100mΩ Max. (Initial) 20mΩ Max. (Initial)
Electrically Life 300,000 Cycles Min 100,000 Cycles Min 300,000 Cycles Min 100,000 Cycles Min
Ambient Temperature -20°C~ +70°C -20°C~ +70°C -20°C~ +70°C -20°C~ +70°C
Total Travel 0.25 ± 0.1mm 1.0 ± 0.2mm 0.6 ± 0.2mm 1.0 mm Min
Operating Force 160 ± 50gf(Momentary)
100 ± 30gf(Alternate)
250 ± 50gf(Momentary With Click)
100 ± 40gf 250 ± 50gf 200gf Min



LED Specifications
For the Specification about the other LEDs, Please contact with sales department
LED Specifications
Color VR IF Recommend Operating Current VF
Nor Max
RED DC 5V 20 mA 20 mA 1.7V 2.4V
GREEN DC 5V 20 mA 20 mA 1.9V 2.4V
YELLOW DC 5V 20 mA 20 mA 1.9V 2.4V
BLUE DC 5V 20 mA 20 mA 3.0V 3.6V
WHITE DC 5V 20 mA 20 mA 1.7V 2.4V



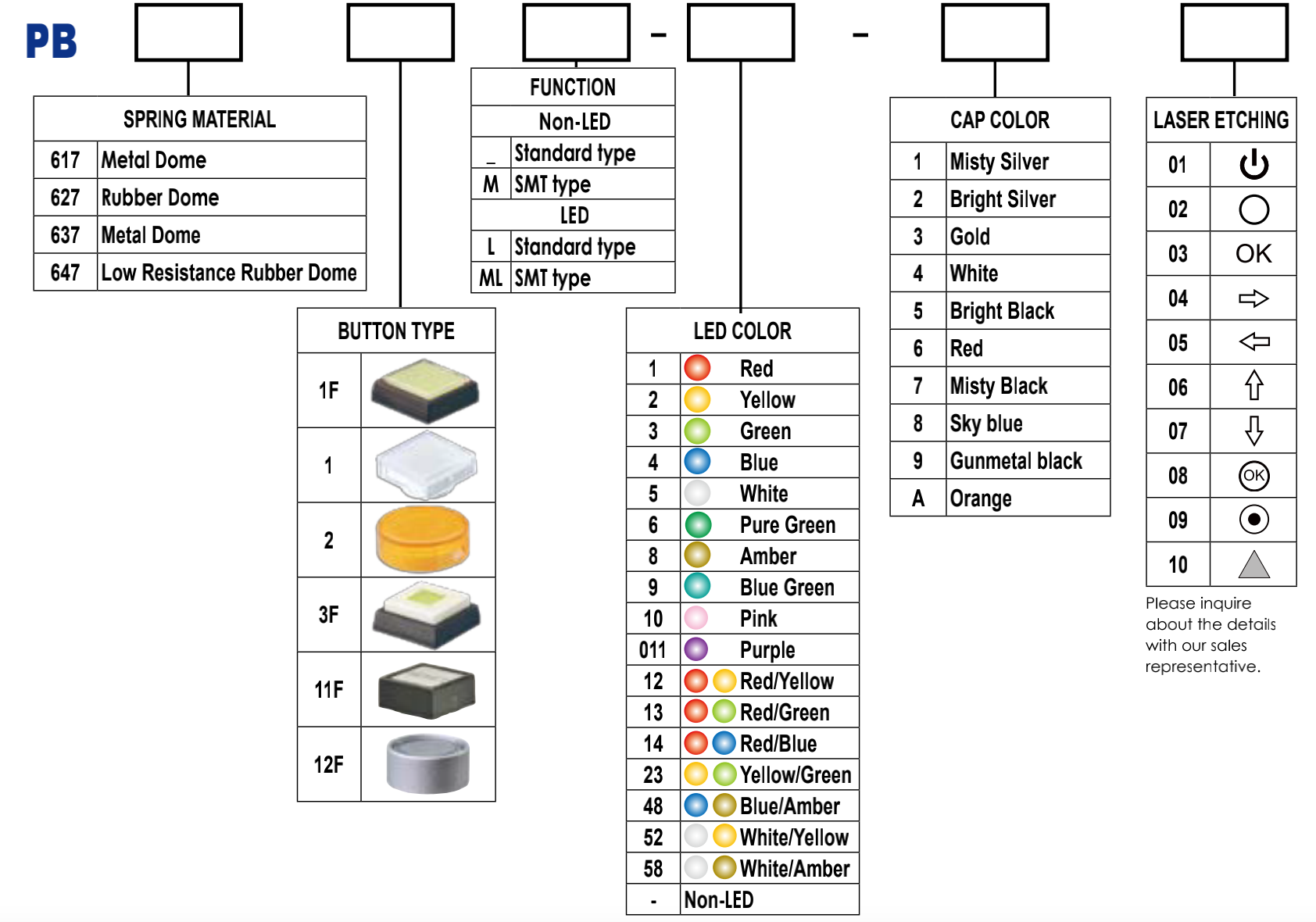

> Product Selection

Operating Characteristics
Unit: mm
PB6171FL

Item No.



Dimensions



P.C.B Layout




Unit: mm
PB6171L

Item No.



Dimensions



P.C.B Layout


Unit: mm
PB6172ML

Item No.



Dimensions



P.C.B Layout




Unit: mm
PB6173FM

Item No.



Dimensions



P.C.B Layout


Unit: mm
PB61711FL

Item No.



Dimensions



P.C.B Layout




Unit: mm
PB6172FL

Item No.



Dimensions



P.C.B Layout
