Snap Action Switch/Micro Switch
Model：WL Series
Feature :
• High precision and metal die-casting body.
• Easy to wire connection construction
• High mechanical strength
• Dust-proof construction
Download
Add to inquiry
• High precision and metal die-casting body.
• Easy to wire connection construction
• High mechanical strength
• Dust-proof construction
Specifications
| Item | Standard |
| Rating | 10A, 125V or 250VAC |
| Contact Resistance | 25mΩ max. (initial) |
| Insulation Resistance | 100MΩ min. (at 500VDC) |
| Dielectric Strength | 1,000VAC,50/60Hz for 1 minute |
| Service Life Mechanically | 1,000,000 operations min. |
| Service Life Electrically | 100,000 operations min |
> Product Selection
Operating Characteristics

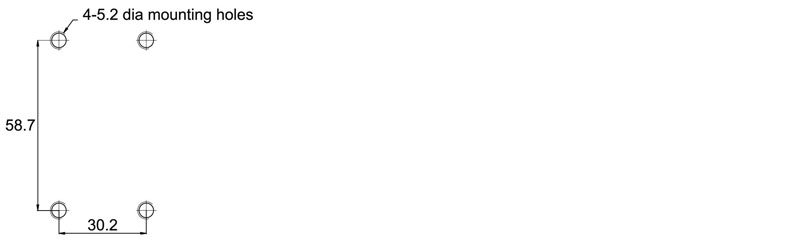

Item No. | Dimensions
| Unit: mm | |||
| WL5101 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 2,720g | |
| RF | min | 910g | |
| PT | max. | 1.7 mm | |
| OT | min. | 6.4 mm | |
| MD | max. | 1 mm | |
| TF max. | max. | - | |
| TT/OP | min. | 34±0.8 mm | |
Item No. | Dimensions
| Unit: mm | |||
| WL5102 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 2,720g | |
| RF | min | 910g | |
| PT | max. | 1.7 mm | |
| OT | min. | 5.6 mm | |
| MD | max. | 1 mm | |
| TF max. | max. | - | |
| TT/OP | min. | 44±0.8 mm | |
Item No. | Dimensions
| Unit: mm | |||
| WL5104 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 1,360g | |
| RF | min | 227g | |
| PT | max. | 20° | |
| OT | min. | 30° | |
| MD | max. | 12° | |
| TF max. | max. | 2,720g | |
| TT/OP | min. | 50° | |
Item No. | Dimensions
| Unit: mm | |||
| WL5105 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 1,200g | |
| RF | min | - | |
| PT | max. | 50°±5° | |
| OT | min. | 35° | |
| MD | max. | - | |
| TF max. | max. | - | |
| TT/OP | min. | 90°±10° | |
Item No. | Dimensions
| Unit: mm | |||
| WL5106 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 150g | |
| RF | min | - | |
| PT | max. | 28 mm | |
| OT | min. | 28 mm | |
| MD | max. | - | |
| TF max. | max. | - | |
| TT/OP | min. | - | |
Item No. | Dimensions
| Unit: mm | |||
| WL5107 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 1,360g | |
| RF | min | 227g | |
| PT | max. | 22° | |
| OT | min. | 30° | |
| MD | max. | 12° | |
| TF max. | max. | 2,720g | |
| TT/OP | min. | 50°* | |
Item No. | Dimensions
| Unit: mm | |||
| WL5108 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 1,360g | |
| RF | min | 227g | |
| PT | max. | 20° | |
| OT | min. | 30° | |
| MD | max. | 12° | |
| TF max. | max. | 2,720g | |
| TT/OP | min. | 50° | |
Item No. | Dimensions
| Unit: mm | |||
| WL5109 | |||
| Operating Characteristics | |||
| Terminal | - | Item No | |
| OF | max | 2,720g | |
| RF | min | 910g | |
| PT | max. | 1.7 mm | |
| OT | min. | 6.4 mm | |
| MD | max. | 1 mm | |
| TF max. | max. | - | |
| TT/OP | min. | 44±0.8 mm | |
Certification
