Snap Action Switch/Micro Switch
Model：SR Series
Feature :
• Coil spring design, long mechanical life.
• Several lever options, easy to install.
• Excellent water proof, suitable for special ambient application.
• Sensitive snap action switch, suitable for quick response application.
Applications :
Automotive Door Latch,Steamer,Telephone,Air Conditioner,Humidifier,Alarm,Security Device,Mixer & Chopper,Solder Gun,Neon Phone,Fax Machine,Joystick ,Water Pump, Money Sorter,Food Processor,Electric Knife,Juice Maker. etc.
Download
Add to inquiry
• Coil spring design, long mechanical life.
• Several lever options, easy to install.
• Excellent water proof, suitable for special ambient application.
• Sensitive snap action switch, suitable for quick response application.
Applications :
Automotive Door Latch,Steamer,Telephone,Air Conditioner,Humidifier,Alarm,Security Device,Mixer & Chopper,Solder Gun,Neon Phone,Fax Machine,Joystick ,Water Pump, Money Sorter,Food Processor,Electric Knife,Juice Maker. etc.
Specifications
> Product Selection

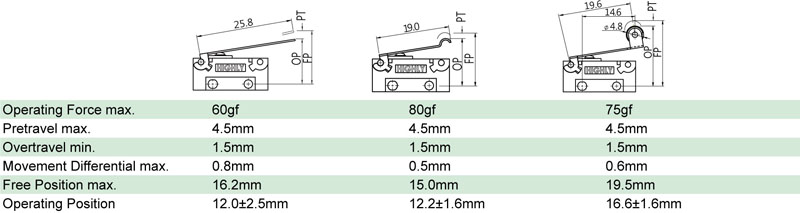

Operating Characteristics
| Actuator Type | 00 Pin Plunger | 01 Short Lever | 02 Middle Lever |
| Actuator Type | 03 Longer Lever | 04 Simulated roller leaf lever | 05 Wheel Lever |
Outline Dimension
| Termina | |
| (A) : Solder Type |
| Termina | ||
| (P) : P.C.B Type |

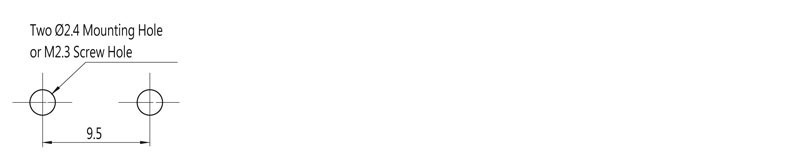

> Mounting
Use M2.3 mounting screws with plain washers or spring washers to securely mount the switch.
Tighten the screws with torque of 0.23 to 0.26 N•m {2.3 to 2.7 kgf •cm}
Overforce of torque may result in deterioration of the sealing or damage.

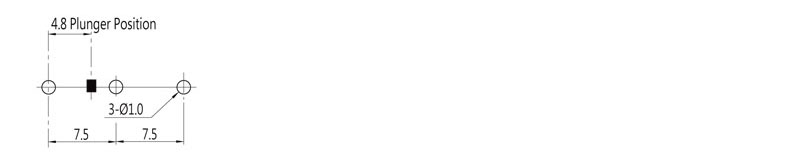

> P.C.B Layout
To solder the lead to the terminal, apply a soldering iron rated at 60 W max. (temperature of soldering iron:360°C max.) for no more than 5 seconds.
