Limit Switch

Limit Switch

Model：D Series
Feature :
• High precision limit switch and long life.
• Suitable for applications demanding higher mechanical Strength.
• Gasket diaphragm seal provides high environmental resistance.
Download Add to inquiry
Specifications
Item Standard
Rating 10A, 125V or 250VAC
Contact Resistance 25mΩ max. (initial)
Insulation Resistance 100MΩ min. (at 500VDC)
Dielectric Strength 1,000VAC,50/60Hz for 1 minute
Service Life Mechanically 1,000,000 operations min.
Service Life Electrically 100,000 operations min



> Product Selection

Operating Characteristics

Item No.   |   Dimensions

Unit: mm
D5000
Operating Characteristics
Terminal - Item No
OF max 600g.
RF min 100g
PT max. 1.6 mm
OT min. 5 mm
MD max. 0.2 mm
OP - 21.8±1.2 mm
FP - --



Item No.   |   Dimensions

Unit: mm
D5020
Operating Characteristics
Terminal - Item No
OF max 600g.
RF min 100g
PT max. 1.6 mm
OT min. 5 mm
MD max. 0.2 mm
OP - 33.35±1.2 mm
FP - --



Item No.   |   Dimensions

Unit: mm
D5040
Operating Characteristics
Terminal - Item No
OF max 600g.
RF min 100g
PT max. 1.6 mm
OT min. 5 mm
MD max. 0.2 mm
OP - 33.35±1.2 mm
FP - --



Item No.   |   Dimensions

Unit: mm
D2000
Operating Characteristics
Terminal - Item No
OF max 195g.
RF min 28g
PT max. 8.5 mm
OT min. 3.2 mm
MD max. 2.6 mm
OP - 40±1 mm
FP - 50 mm



Item No.   |   Dimensions

Unit: mm

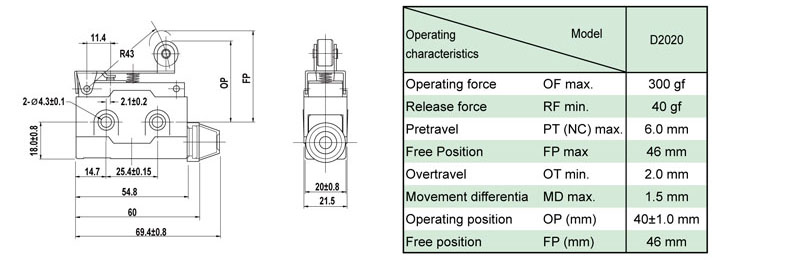

D2020
Operating Characteristics
Terminal - Item No
OF max 300g.
RF min 40g
PT max. 6 mm
OT min. 2 mm
MD max. 1.5 mm
OP - 40±1 mm
FP - 46 mm



Item No.   |   Dimensions

Unit: mm
D1000
Operating Characteristics
Terminal - Item No
OF max 170g.
RF min 25g
PT max. 10 mm
OT min. 4 mm
MD max. 3 mm
OP - 25±1 mm
FP - 35 mm



Item No.   |   Dimensions

Unit: mm
D1020
Operating Characteristics
Terminal - Item No
OF max 260g.
RF min 35g
PT max. 7 mm
OT min. 2.5 mm
MD max. 1.7 mm
OP - 25±1 mm
FP - 32 mm
